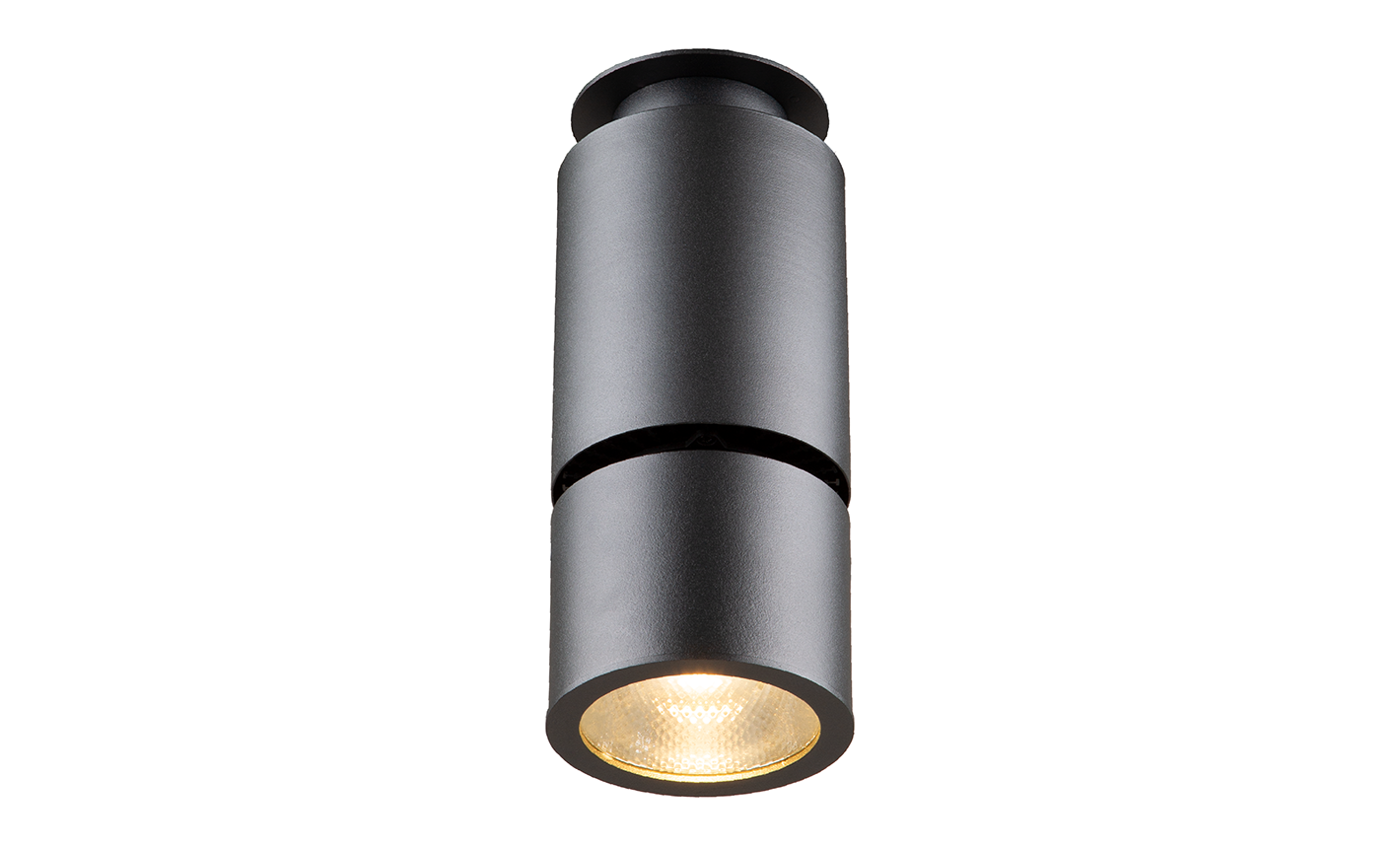

Anolis Ambiane® HP111 Surface Mount Ambiane® HP111 Surface Mount

Surface mount version of Ambiane™ is ideal for mid-throw application onto leveled ceiling. Same light source specification hidden inside of the beautiful design makes this fixture an ideal add-on to lighting design of Ambiane™ series. Giving designers and installers a choice of 20, 40, 60 or 80– degree optical beam spreads, the Ambiane™ HP111 provides an endless array of positioning options across an entire installation. The incorporation of our L3™ (Low Light Linearity) dimming system allows seamless fades to black even when mixed with traditional sources. With no UV or IR emissions which make it ideal for museums as well, the fixture is easily controlled via DMX or DALI and is RDM compatible.

Key Features

Perfect colour reproduction - High CRI
Power balancing feature
DMX/DALI
Lumen Output & Light Source
Max. 3239 lm
High Power LED Module CRI 90+
Projected Lumen Maintenance
L90B10 >90.000 hrs, Ta = 25°C / 77°F
Power Supply (Consumption)
48 V DC (Typ. 75W)
Physical (max WxHxD)
ø129 x 302 mm | ø5.1 x 11.9 in. (20°)
ø129 x 298 mm | ø5.1 x 11.7 in. (40°)
ø129 x 285 mm | ø5.1 x 11.2 in. (60°)
ø129 x 268 mm | ø5.1 x 10.5 in. (80°)
3.1 kg | 6.8 lbs (20°,40°), 3 kg | 6.6 lbs (60°, 80°)
Aluminium Body

Standard Product Versions

RGBW
RGBW (W)options
PureWhite (W)options
Tuneable White
Tungsten Dim

Special Order Options - White Colour Temperature

2700K
4000K
2700-4000K
3200-1000K

Optic Options

20°, 40°, 60°, 80°

Control Protocols / Options

DMX+RDM
PW & TD only
DALI 2

Finish / Options

RAL 9011 / Graphite Black
RAL 9005 / Black
RAL 9016/ White
Custom Paint Colour Option

Standards & Certification

European CE
ETL
UKCA
RoHS
IP20
2 Years
5 Years (Registered)
