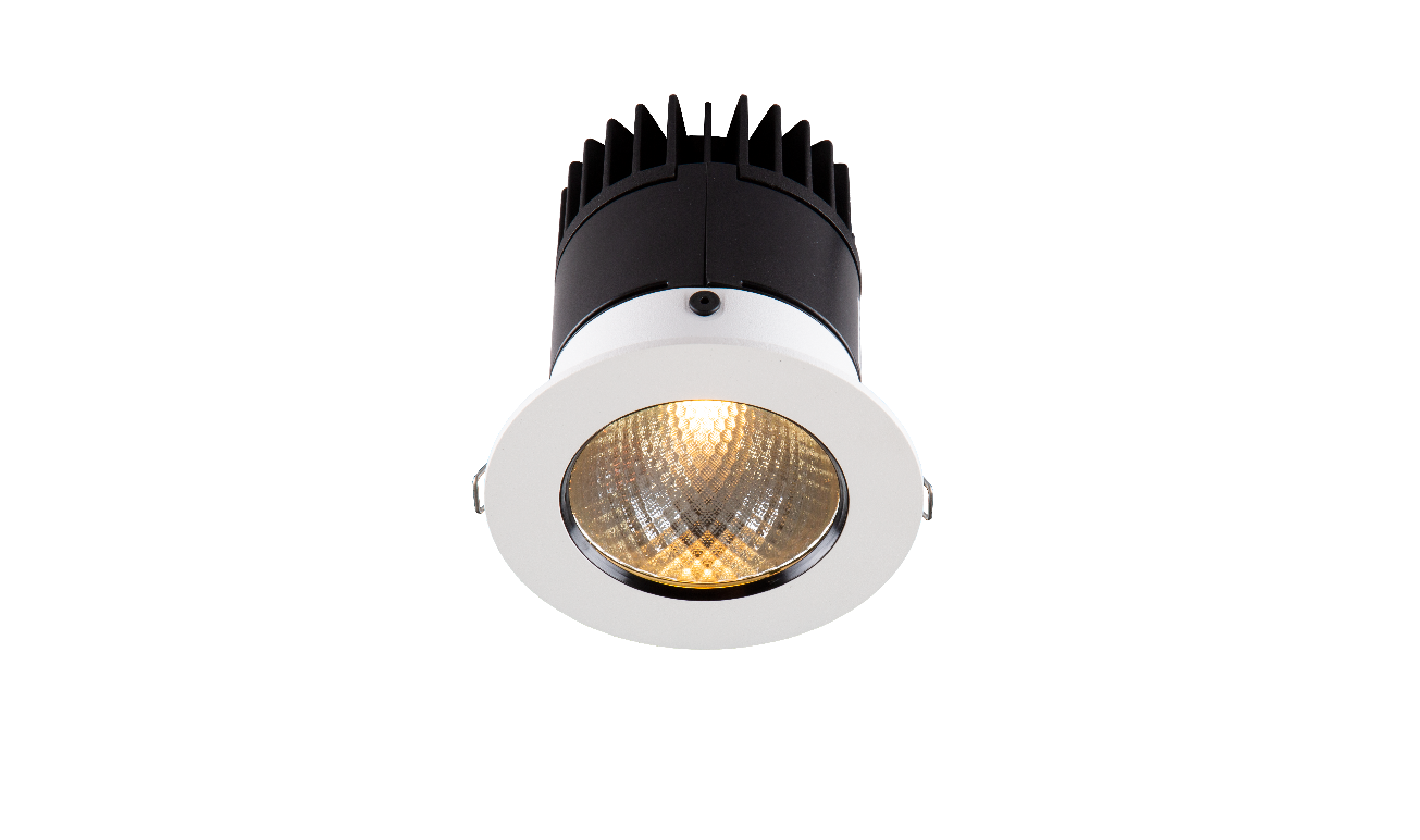

Anolis Ambiane® SP16 Recessed Ambiane® SP16 Recessed

The smallest luminaire of Ambiane™ range with only 108 mm in diameter offers efficient, powerful and high-quality solution for lower ceiling recessed applications. Highly efficient LED module with CRI 90+, no UV or IR emissions, CCT and green correction settings is perfect for museums, art galleries, theaters, concert halls and other most demanding installations. Sharing the same LED chip-set with other Ambiane™ fixtures it complements the range and gives lighting designers even more options for most various interior lighting installations.

Key Features

Power balancing feature
DMX/DALI
Lumen Output & Light Source
Wide range of color configurations
(RGBW, PW, TW, TD)
High Power LED Module CRI 90+
Projected lumen maintenance
L90B10 >90.000 hrs, Ta = 25°C / 77°F
Power Supply (Consumption)
44-50V DC (Typ. 10W)
Physical (max WxHxD)
ø108 x 110 / 100 (30° / 60°) | 0.49 kg.
ø4.2 x 4.2 / 4.3 (30° / 60°) | 1.08 lbs.
Aluminium Body

Standard Product Versions

RGBW
RGBW (W)options
PureWhite (W)options
Tuneable White
Tungsten Dim

Special Order Options - White Colour Temperature

2700K
4000K
2700-4000K
3200-1000K

Optic Options

30°, 60°

Control Protocols / Options

DMX+RDM
0-10V (PW & TD only)
DALI 2

Finish / Options

Black RAL 9005
Grey Aluminium RAL 9007
Graphite Black RAL 9011
Pure White RAL 9010
Sandstone RAL 1014
Custom Paint Colour Option

Standards & Certification

UKCA
RoHS
IP20
European CE
ETL
