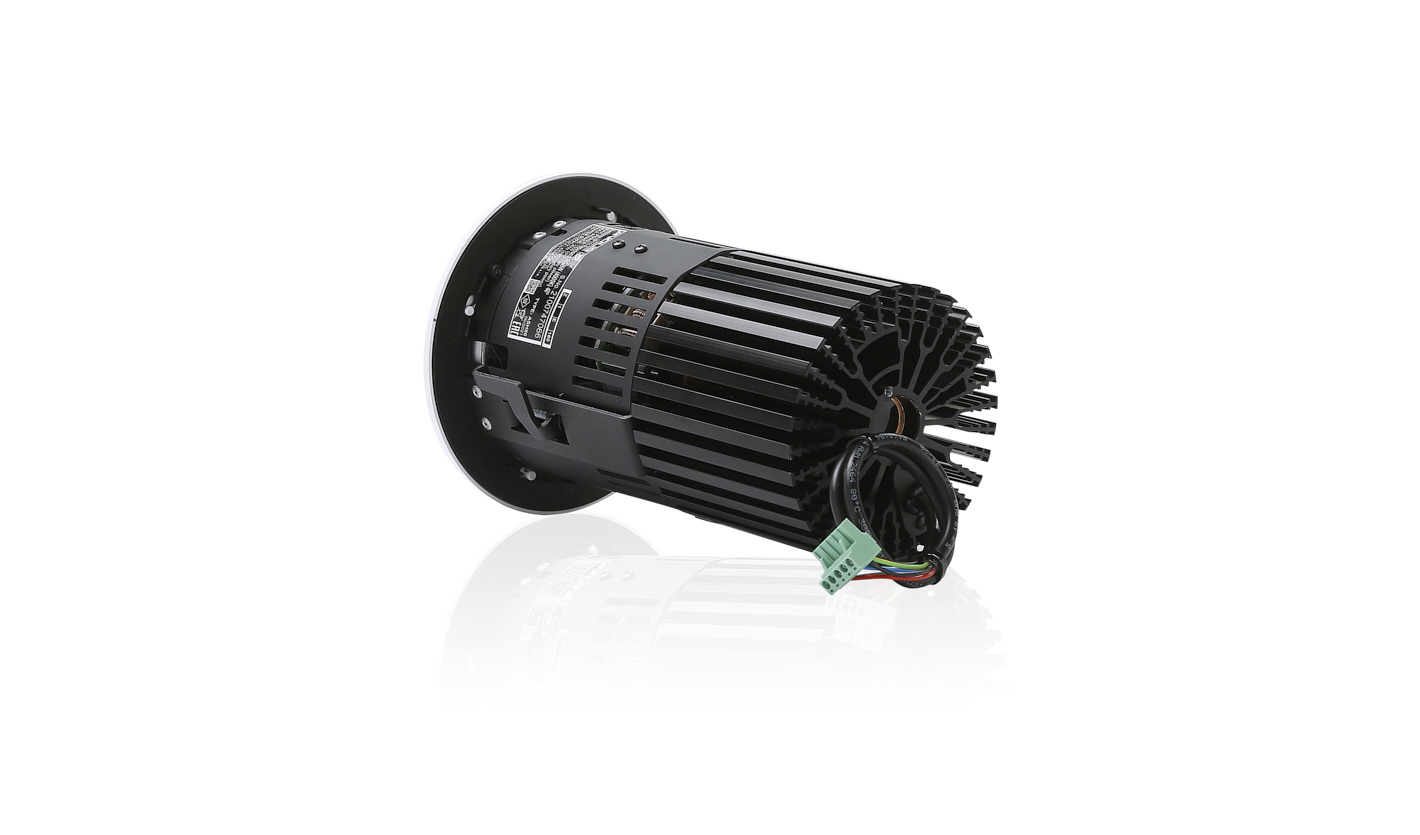

Anolis Ambiane® HP111 Recessed Ambiane® HP111 Recessed

As the mid-size luminaire in the Ambiane family, the new HP111 is designed for lower ceiling installations or to cover areas where the power of the larger XP56 is not necessary. Using the same light source specification as all other family members, the fixture is an ideal add-on to lighting designs using other Ambiane luminaires. Giving designers and installers a choice of 20, 40, 60 or 80-degree optical beam spreads, the ambiane HP111 provides an endless array of positioning options across an entire installation. The incorporation of our L3™ (Low Light Linearity) dimming system allows seamless fades to black even when mixed with traditional sources. With negligible UV and IR emissions make it ideal for museums. The fixture is easily controlled via DMX or DALI and is RDM compatible.

Key Features

Perfect colour reproduction - High CRI
Power balancing feature
DMX/DALI
Lumen Output & Light Source
Max. 3239 lm
High Power LED Module CRI 90+
Projected Lumen Maintenance
L90B10 >90.000 hrs, Ta = 25°C / 77°F
Power Supply (Consumption)
48 V DC (Typ. 75W) - Main
48 V DC (Typ. 20W) - Back-up
Physical (max WxHxD)
ø161x227 (20°/40°) ø179x210mm (60°/80°) 2.1Kg.
ø6.2x8.9 (20°/40°) ø6.2x8.2in. (60°/80°) 4.6lbs.
Aluminium Body

Standard Product Versions

RGBW
RGBW (W)options
PureWhite (W)options
Tuneable White
Tungsten Dim

Special Order Options - White Colour Temperature

2700K
4000K
2700-4000K
3200-1000K

Optic Options

20°, 40°, 60°, 80°

Control Protocols / Options

DMX+RDM
0-10V (PW & TD only)
DALI 2

Finish / Options

Grey Aluminium RAL 9007
Graphite Black RAL 9011
Pure White RAL 9010
Sandstone RAL 1014
Custom Paint Colour Option

Standards & Certification

5 Years (Registered)
European CE
ETL
UKCA
RoHS
IP20
2 Years
