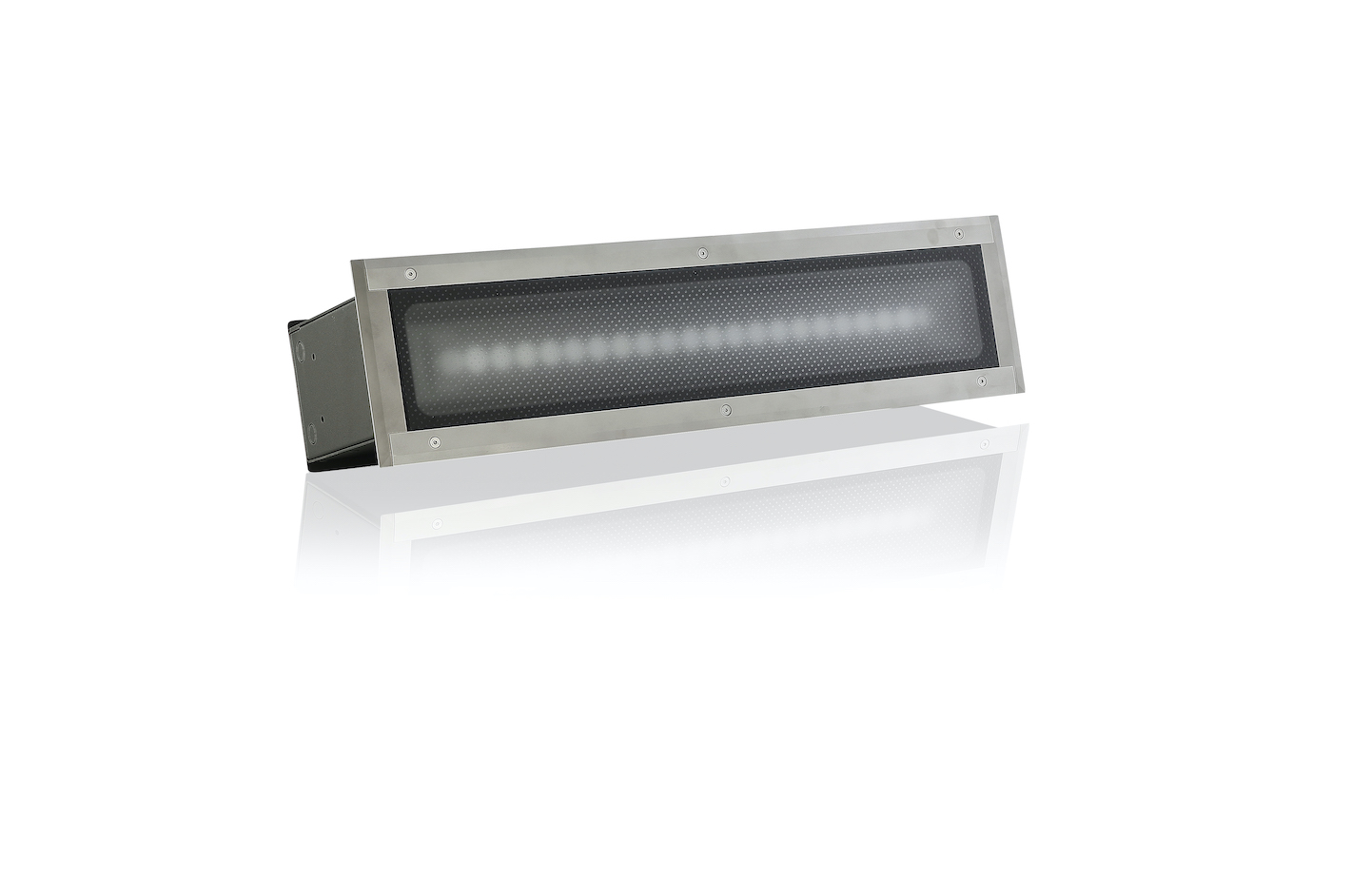

Anolis Eminere® Inground 1/2/4 Eminere® Inground 1/2/4

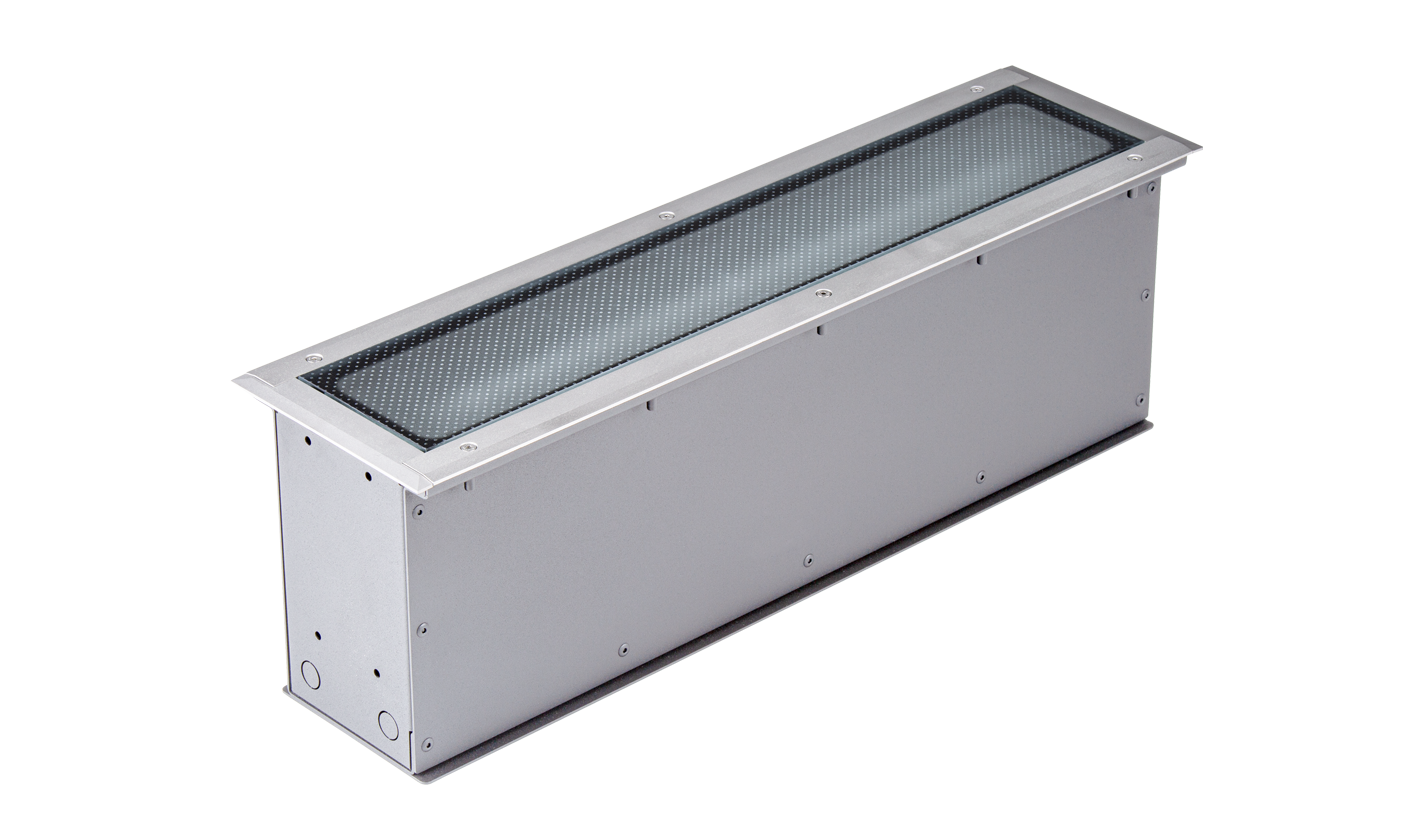

A robust luminaire designed specifically to be installed into the ground. A stainless steel installation sleeve provides rust protection and as well as “armour” for the fixture itself. Available in three size with standard or Anti-skid glass. Built to exacting standards, these linear fixtures are tough enough to withstand extreme environments whilst producing beautiful colours from the RGBW, RGBA or PureWhite LED chips.

Key Features

IP67 with 'Drive over' capabilities. Single or multiple line. Adjustable tilt alignment after installation.
Lumen Output & Light Source (version 2/4)
Max. 1010/2019/4038 lm. Standard glass
12/24/48 x Single chip high-power LED
Projected Lumen Maintenance
L90B10 >90.000 hrs, Ta = 25°C / 77°F
Power Consumption
Typ. 30/50/90W
Physical (max WxDxL version 1/2/4) (including installation sleeve)
186 x 23o x 407/707/1307 mm - 14/21.5/39.7 kgs.
7.3 x 9 x 16.02/27.8/51.5 in. - 30.8/47.3/87.3 lbs.
Aluminium Body, Tempered Glass

Standard Product Versions

RGBW
RGBW (W)options
RGBA
PureWhite (W)options
Tuneable White

Special Order Options - White Colour Temperature

2200K (Upon Request)
2500K (Upon Request)
2700K (Upon Request)
3000K
3500K (Upon Request)
4000K (Upon Request)
5000K (Upon Request)
6500K (Upon Request)
2700-6500K (Upon Request)

Optic Options

9°, 15°, 30°, 50°, 65°, 100°
10° x 30° , 10° x 60° , 35° x 70° , 15° x 90°
Wallwasher, Wallwasher Wide

Control Protocols / Options

Wireless - Option

Finish / Options

Graphite Black RAL 9011
Graphite Black RAL 9011 - Harsh Environment
Stainless Steel (Sleeve & Cover plates)

Standards & Certification

IK10
IP67
2 Years
5 Years (Registered)
European CE
ETL
UKCA
RoHS

Accessories

Cover Plate Continuous (Order Separately)
Cover Plate End (Order Separately)
Mounting Sleeve (Order Separately)

Product Configurator

Your Product Code
