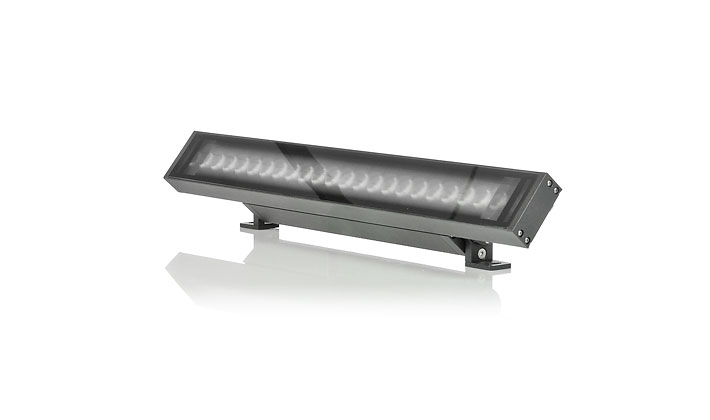

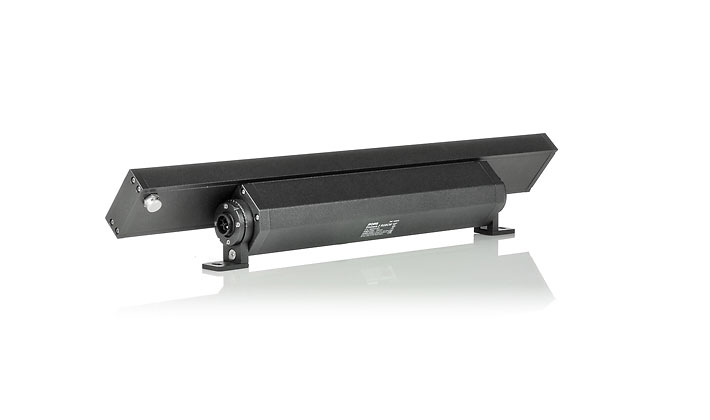

Anolis Eminere® 1/2/3/4 Eminere® 1/2/3/4

The new Eminere® range by Anolis builds on the success of the original ArcLine™ Outdoor with precision optics and available in four sizes and models, perfect for a wide range of exterior and interior applications such as Flood Lighting, Wall Grazing, Wall Washing and Accent Lighting. Built to exacting standards, these linear fixtures are tough enough to withstand extreme environments whilst producing beautiful colours from the RGBW, RGBA or PureWhite LED chips.

Key Features

Low profile, high output, wide range of optics, easy to connect, IP67
Lumen Output & Light Source (version 1/2/3/4)
Max. 1147/2294/3441/4588 lm
12/24/36/48 x Single Chip
Projected Lumen Maintenance
L90B10 >90.000 hrs, Ta = 25°C / 77°F
Power Consumption (version 1/2/3/4)
Typ. 25/45/65/85W
Physical (max HxWxL version 1/2/3/4)
107 x 76 x 329/629/929/1229mm - 2.5/4.2/5.9/7.7kg
3.6 x 3.0 x 13.0/24.8/36.6/48.4in. - 5.5/9.25/13/16lbs
Aluminium Body, Tempered Glass

Standard Product Versions

RGBW
RGBW (W)options
RGBA
PureWhite (W)options
Tuneable White

Special Order Options - White Colour Temperature

2200K (Upon Request)
2500K (Upon Request)
2700K (Upon Request)
3000K
3500K (Upon Request)
4000K (Upon Request)
5000K (Upon Request)
6500K (Upon Request)
2700-6500K (Upon Request)

Optic Options

9°, 15°, 30°, 50°, 65°, 100°
10° x 30° , 10° x 60° , 35° x 70° , 15° x 90°
Wallwasher, Wallwasher Wide

Control Protocols / Options

Wireless option (2/3/4 only)

Finish / Options

Grey Aluminium RAL 9007
Graphite Black RAL 9011
Pure White RAL 9010
Sandstone RAL 1014
Custom Paint Colour Option
Graphite Black RAL 9011 - Harsh Environment
Grey Aluminium RAL 9007 - Harsh Environment
Pure White RAL 9010 - Harsh Environment
Sandstone RAL 1014 - Harsh Environment

Standards & Certification

2 Years
5 Years (Registered)
European CE
Vibration IEC60598-1 / 3GANSIC136.31
ETL
UKCA
RoHS
IK06
IP67

Accessories

Barndoor w/ Side Covers (Order Separately)
Barndoor w/o Side Covers (Order Separately)
C-Clamp for Eminere (Order Separately)
Mounting Brackets 100 | 200 | 300 mm (Order Separately)
Cable Cover (Order Separately)
Field Installable Connector FF (Order Separately)
Field Installable Connector FM (Order Separately)
Waterproof Cover Cap FM (Order Separately)
Jumper Cable 0,25 | 0,5 | 1 | 2 | 3 | 5 | 10m (Order Separately)
Leader Cable 2 | 5 | 10 | 25 | 50m (Order Separately)
Optical Demo Set for Eminere (Order Separately)
Shield for Eminere (Order Separately)

Product Configurator

Your Product Code
