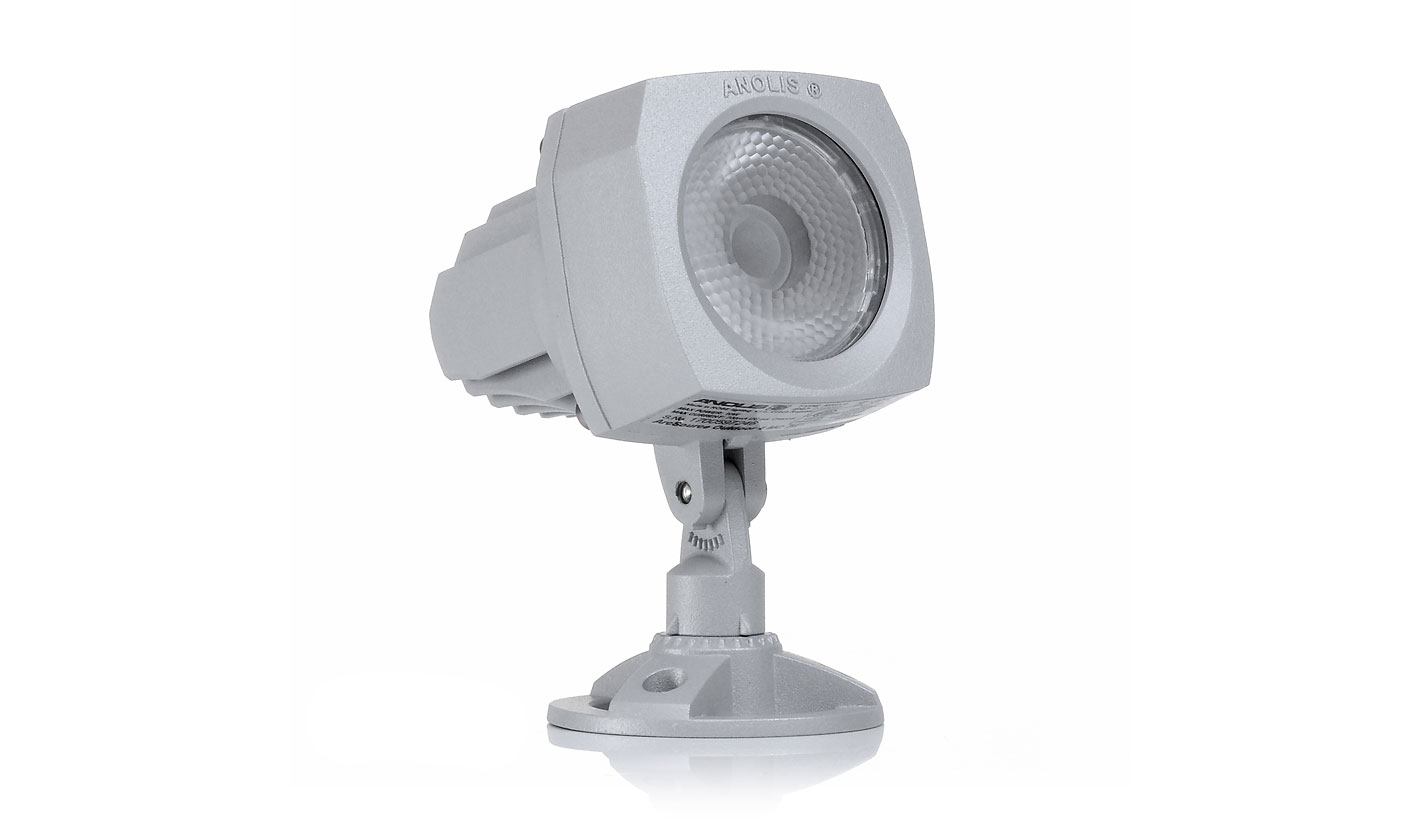

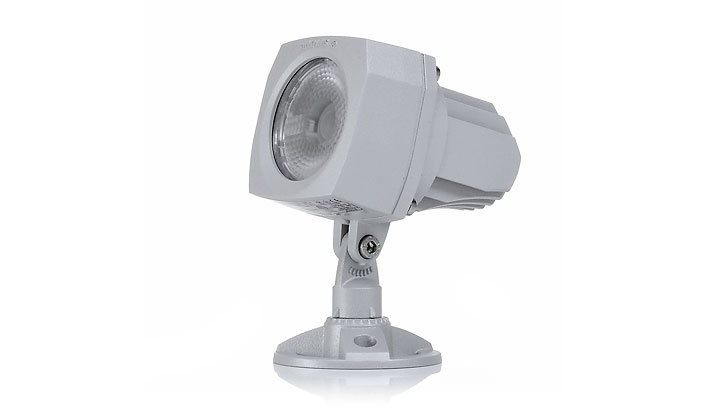

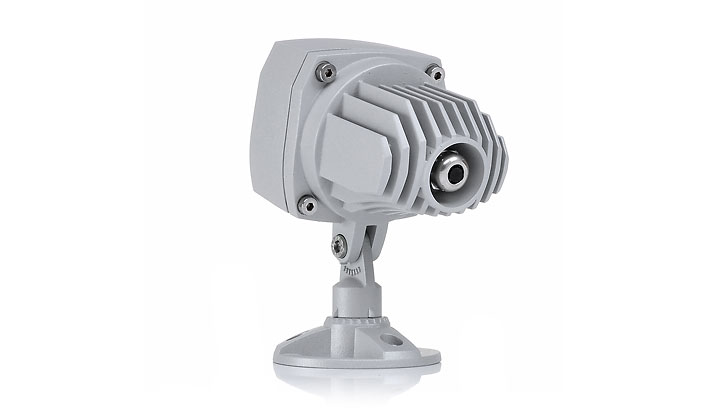

Anolis ArcSource™ Outdoor 4MC Pixel ArcSource™ Outdoor 4MC Pixel

Create controlled, beautiful and dramatic media style effects on landscapes and facade installations with the ArcSource™ Outdoor 4MC Pixel. Each fixture can be individually controlled to alter colour, dimming and intensity to produce stunning effects. Combining high light output, multiple beam angles, precision optics and a high IP rating makes the fixtures suitable for a massive range of applications.

Key Features

Neat and discrete but powerful, white or colour changing, with a wide range of mounting options.
Lumen Output & Light Source
Max. 195 lm
1 x 15W Multichip LED
Projected Lumen Maintenance
L90B10 >90.000 hrs, Ta = 25°C / 77°F
Power Consumption
Typ. 5.5W
Physical (max WxHxD)
64 x 145 x 90 mm - 0.62kg
2.52 x 5.71 x 3.54in. - 1.37lbs
Aluminium Body, Tempered Glass

Standard Product Versions

RGBW (W - 6500K)
PureWhite (3000K)
Tuneable White (Upon Request)

Special Order Options - White Colour Temperature

3000-6500K (Upon Request)

Optic Options

7º, 13º, 20º, 30º, 40º, 60º, 90º
7ºx30º, 7ºx60º, 35x70º, 10x90º

Control Protocols / Options

via ArcPixel Power

Finish / Options

RAL 9006 / Silver
RAL 9011 / Graphite Black
Custom Paint Colour Option

Standards & Certification

European CE
2 Years
5 Years (Registered)


Twin Wall Cover for ASO4MC (Order Separately)
Adapter Stand (ASO 4MC) (Order Separately)
FloorStand (ASO4MC) (Order Separately)
Half Top Hat (ASO4MC) (Order Separately)
Land Spike range (Order Sepatrately)
Pipe Clamp 1/2 inch (ASO4MC) (Order Separately)
Top Hat (ASO4MC) (Order Separately)

Product Configurator

Your Product Code
