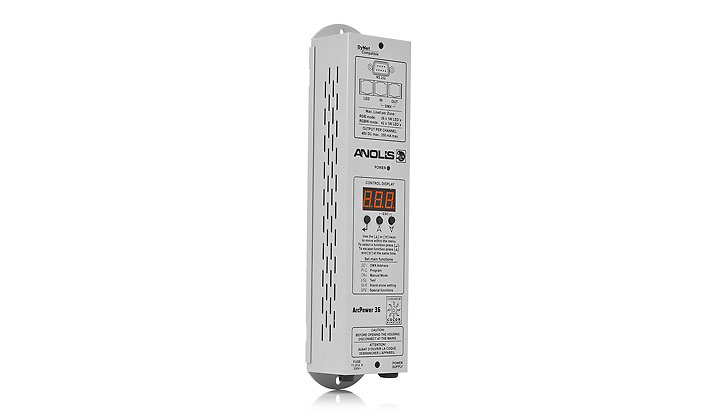

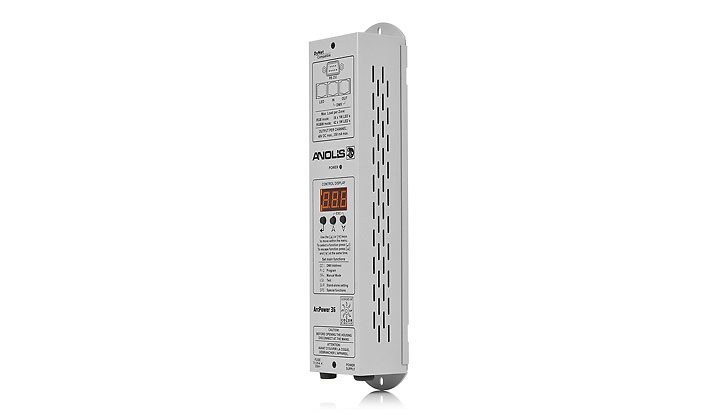

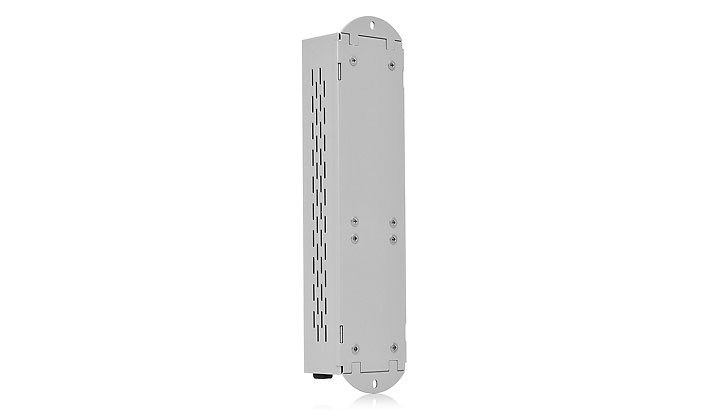

Anolis ArcPower™ 36 ArcPower™ 36

The Anolis range of LED lighting fixtures are brought to life with power and control via the ArcPower™ range. Manufactured from only the highest quality components, the ArcPower range produces both the performance and reliability required for modern lighting solutions.
Using industry standard protocols such as DMX 512, RS232 and DyNet along with globally recognised RJ45 connectors, the ArcPower range is the lighting designer’s perfect solution.

Key Features

Flicker free smooth dimming and control. Stand-Alone and Auto-Start control options. Ideal for ArcSource and ArcLine, White and Colour-changing products
LED Output
1 Zone (RJ45 connector)
350mA per Channel (4) @ Max. 48v DC
RGB:36x1W, RGBW:42x1W, RGBW(MC):10xMC
Control Protocol (connector)
DMX512 (RJ45)
DyNet, RS232 (DE-9 male)
Input Voltage
100-240v AC 50/60Hz Typ. 60W
1m captive cable
Physical (max WxHxD)
326 x 56 x 76 mm - 1.1kg
12.84 x 2.21 x 2.99in. - 2.43lbs

Standard Product Versions

AP36 RGBW CE
10060001
10060003
10060003
10060004
10060004
10060007
10060007

Control Protocols / Options

DMX
DyNet
RS232

Finish / Options

Grey Aluminium RAL 9007

Standards & Certification

European CE
ETL
RoHS
IP20
5 Years (Registered)

Product Configurator

Your Product Code
