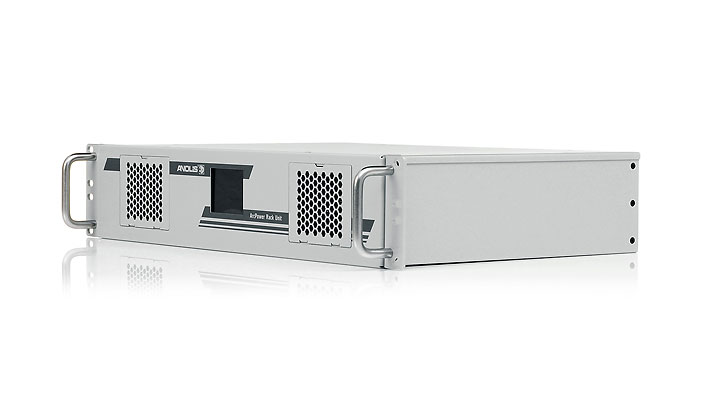

Anolis ArcPower™ Unit ArcPower™ Unit

The ArcPower™ Unit is available in Rack or Wall mount options for maximum installation flexibility. Integrating the latest technology to offer even greater performance in terms of both efficiency and flexibility, and capable of producing both 48v and 28v as outputs, allowing global use without power compatibility issues.  8 individual outputs on the 48v version ( 6 on the 28v version) allow cabling of fixtures efficiently and economically.

Key Features

High density, fully configurable
Rack and Wall mount versions
LED Output

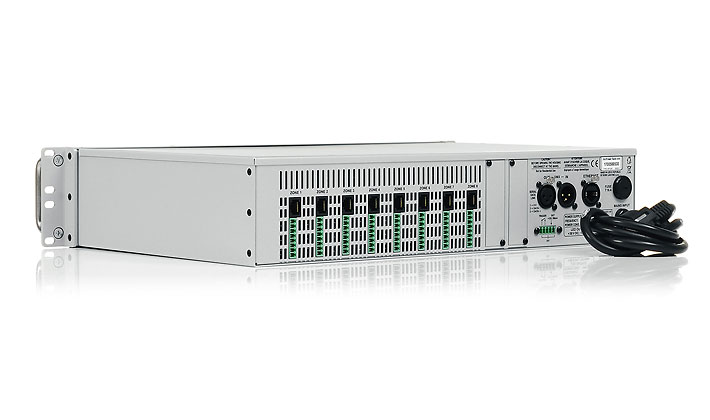

8 x Zone (RJ45/terminals), 48v version
6 x Zone (RJ45/terminals), 28v version
Control Protocol (connector)
DMX512, ArtNet, MANet, MANet2, sACN
Input Voltage
100-240V AC 50/60 Hz
1m power cable
Physical (max WxHxD)
484 x 90 x 321 mm - 6.5kg
19.05 x 3.54 x 12.64 in. - 14.3lbs
Rack mount/Wall mount option

Standard Product Versions

AP Rack RGBW CE
10060081
AP Rack RGBW ETL
10060082

Control Protocols / Options

DMX
ArtNet

Finish / Options

Grey Aluminium RAL 9007
Graphite Black RAL 9011
Custom Paint Colour Option

Standards & Certification

European CE
UKCA
RoHS
IP20
2 Years
5 Years (Registered)

Product Configurator

Your Product Code
