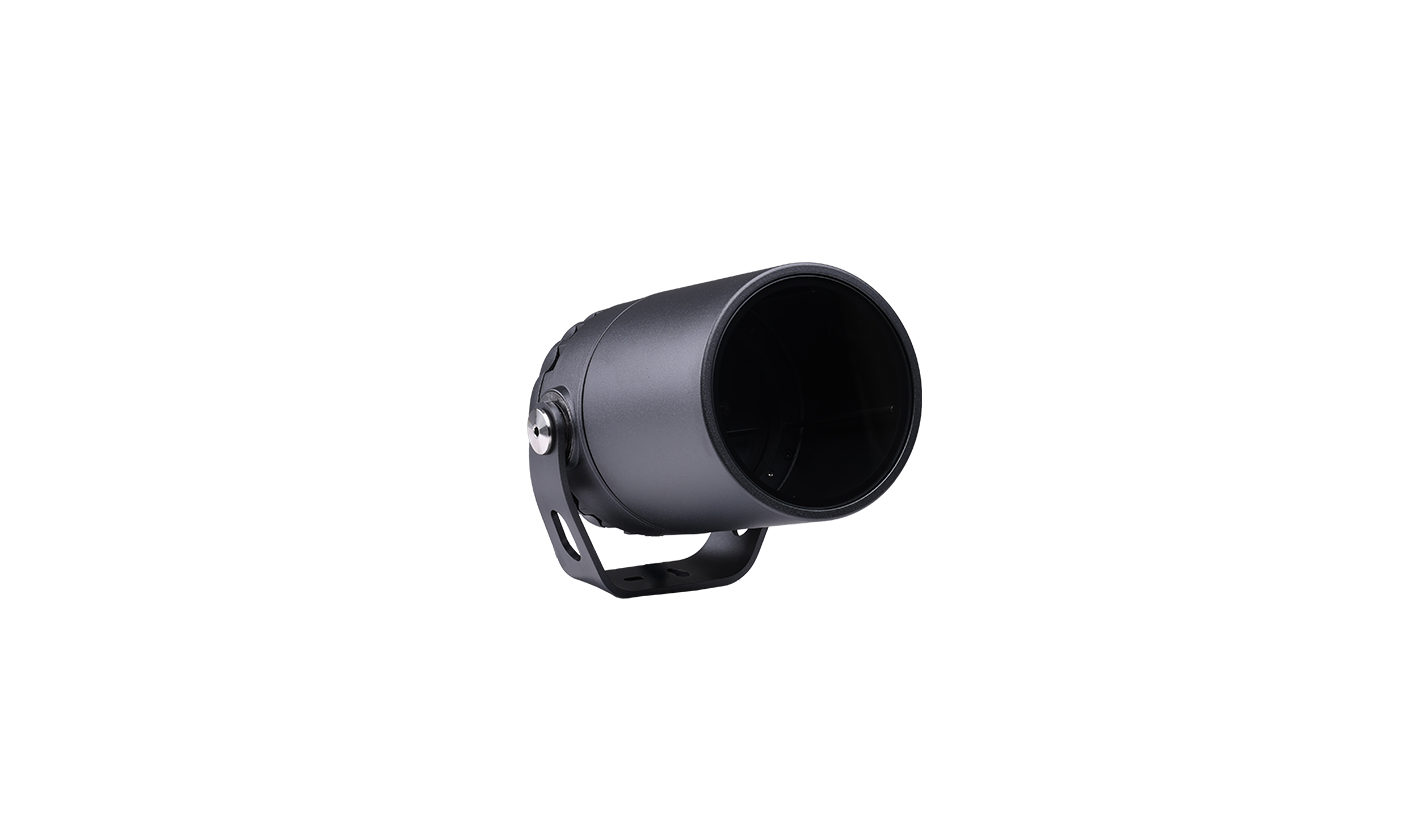

Anolis Calumma™ Arts S SC Calumma™ Arts S SC

Featuring an artistic optical design with nineteen high-efficacy single-chip LEDs, Calumma S SC delivers powerful and expressive light with a distinctive artistic character. It offers four interchangeable lenses and nine textured glass options, which can be freely combined and adjusted directly on site, allowing lighting designers to fine-tune the effect for each installation and create virtually endless lighting possibilities. Its durable housing is built to withstand harsh and marine environments, providing an elegant and robust solution for outdoor architectural applications.

Key Features

Lumen output & Light source
LEDs provides up to 1958 lm output (@10°, RGBW).
Multiple LED colour variants.
Well homogenised light output with great efficacy up to 65 lm/w.
Design & Durability
Die cast aluminium body.
IP67 and IK10
5 year warranty (registered).
Flexibility
Indoor and outdoor LED luminaire.
Equipped with three interchangeable lenses.
Offers nine textured glass options.
Optical components can be replaced on site.
Lighting effects can be adjusted during installation.
Connectivity
Interface protocols DMX/RDM or DALI2.
Possibility of control via E-Box range.
(Junction box not included - Optional Accessories)

Standard Product Versions

RGBW (W - 6500K)
RGBA
PureWhite (3000K)
Tuneable White (Upon Request)

Special Order Options - White Colour Temperature

2200K (Upon Request)
2500K (Upon Request)
2700K (Upon Request)
3000K
3500K (Upon Request)
4000K (Upon Request)
5000K (Upon Request)
6500K
2700-6500K (Upon Request)

Optic Options

10°, No Optics

Lenses

ARC Lens
Fractal Lens
Line Lens

Textured glass

Cathedral Moorish
Cube
DewDrop
Flo
100CF
Ripple
100CRF
100GF
Aerolite

Control Protocols / Options

On / Off (PW & Single Color Only)
DMX+RDM
DALI 2

Finish / Options

Graphite Black RAL 9011
Grey Aluminium RAL 9007
Pure White RAL 9010
Sandstone RAL 1014
Graphite Black RAL 9011 - Harsh Environment
Grey Aluminium RAL 9007 - Harsh Environment
Pure White RAL 9010 - Harsh Environment
Sandstone RAL 1014 - Harsh Environment
Custom Paint Colour Option

Standards & Certification

5 Years (Registered)
Vibration IEC60598-1 / 3GANSIC136.31
European CE
ETL
UKCA
RoHS
IK10
IP67

Key Resources

Specification Sheets & Certifications

Can’t find what you’re looking for? View all Resources

Accessories

100CF Textured Glass (Order Separately)
100CRF Textured Glass (Order Separately)
100GF Textured Glass (Order Separately)
Aerolite Textured Glass (Order Separately)
ARC Lens (Order Separately)
Cube Textured Glass (Order Separately)
Catherdal Moorish Textured Glass (Order Separately)
Flo Textured Glass (Order Separately)
Fractal Lens (Order Separately)
Line Lens (Order Separately)
DewDrop Textured Glass (Order Separately)
Ripple Textured Glass (Order Separately)
Land Spike for Calumma S, M, L, XL
Pole Adaptor (ø 102mm) (Order Separately)
Floor Stand Calumma S/M (Order Separately)
Junction Box CE (Order Separately)
Junction Box US (Order Separately)
