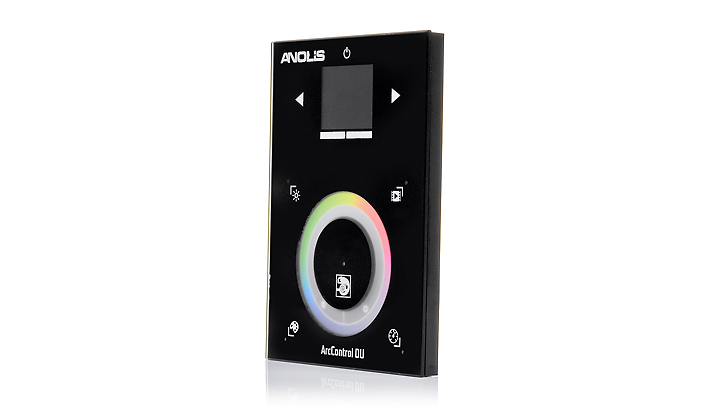

Anolis ArcControl™ DU Black ArcControl™ DU Black

Bringing the humble dimmer switch into the 21st century for a huge range of applications including architectural, retail, leisure and entertainment. The simple glass touch interface is backed by world leading lighting control software allowing creative programming for all types of applications. Multi-room control with 500 scenes and 10 zones allow the user to precisely configure dramatic scenes. Programmable via PC/Mac and connected directly with micro USB/Ethernet, the ArcControl™ DU allows the user complete flexibility. Utilising DMX means the unit is ready to connect to all Anolis systems, keeping the user in complete control.

Key Features

LED Output
Control up to 500 scenes
10 zones
Control Protocol (connector)
DMX512 (RJ45) x2
Input Voltage
6V DC 0.6A
Physical (max WxHxD)
146 x 106 x 10 mm - 0.2kg
5.75 x 4.17 x 0.39 in. - 0.44lbs
Order Code - Variant Description

Control Protocols / Options

DMX

Finish / Options

Black Gloss

Standards & Certification

RoHS
IP20
5 Years (Registered)
European CE
ETL

Key Resources

Can’t find what you’re looking for? View all Resources

Accessories

Adapter AC/DC 9V/650mA 13051648
