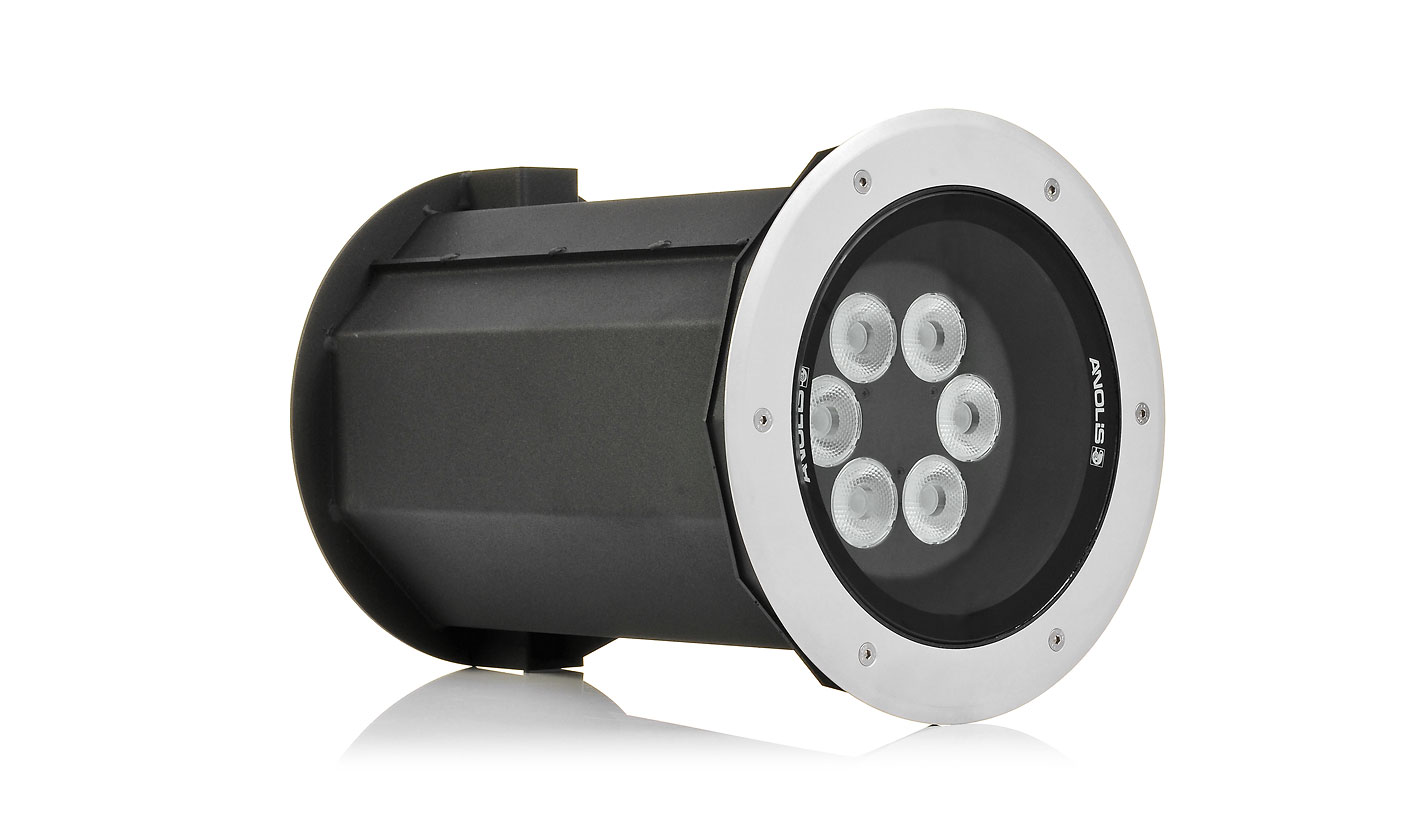

Anolis ArcSource™ Inground 24MC Integral ArcSource™ Inground 24MC Integral

Difficult inground installations are now a thing of the past with the new inground unit from Anolis. The ArcSource™ Inground 24MC Integral has been specifically designed to simplify installation. The fixture only requires mains power when combined with the wireless control capability - drastically reducing installation time and cost. High light output comes from six powerful MultiChip LEDs and it can be used with a variety of optics, from narrow to wide, in addition to an asymmetrical option. The light source can be remotely tilted +/- 15° from the horizontal position, always ensuring accurate illumination of the selected surface. On top of that, ArcSource Inground 24 Integral can be equipped by antiskid glass with highest standards of certification for anti slip usage while having no impact on the outstanding quality of colourmixing capabilities.

Key Features

Inground light source - integrated electronics & remote adjustable beam position. Clear/ Anti-Skid glass.
Lumen Output & Light Source
Max. 1,542 lm
6 x Multichip
Projected Lumen Maintenance
60,000 hrs (L70)
Power Consumption
Typ. 65W
Physical (max WxHxD)
ø320 x 400 mm - 18.2kg
ø12.6 x 15.75in. - 40.1lbs
Aluminium, S/Steel, Tempered Glass- Clear or Anti-Skid

Product Variant

RGBW
PureWhite
SmartWhite

White Colour Temperature Options

6300K
2700-7100K

Optic Options

7° (16° Anti-Skid)
24° (28° Anti-Skid)
34° (33° Anti-Skid)
7°x42° (16°x42° Anti-Skid)
42°x7° (42°x16° Anti-Skid)

Control Protocols

DMX+RDM
Wireless - Option

Finish Options

Stainless Steel

Standards & Certification

European CE
ETL
RoHS
IP68
IK10
Warranty

Specify Product

ArcSource™ Inground 24MC Integral Product Code Configurator

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
