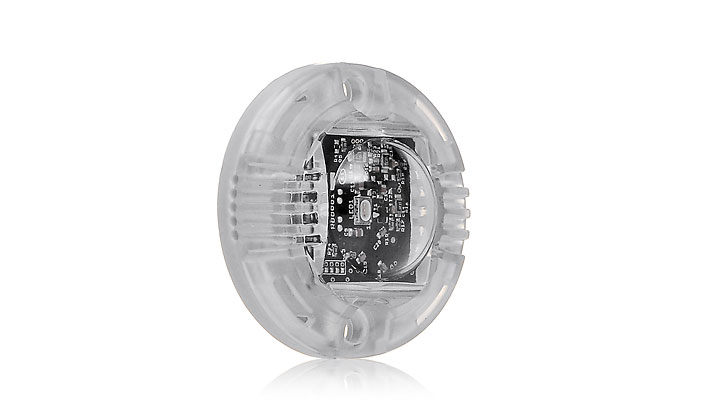

ArcPix™ II

Perfect for complex pixel mapping and media effects on structural surfaces, the ArcPix™II from Anolis is suitable for both interior and exterior applications. The plug and play electronics allow for up to 400 units to be combined with a single ArcPixel™ Power unit, giving lighting designers great flexibility to create dramatic visual effects in a variety of colours. The IP67 rating ensures the fixtures are tough enough to withstand the harshest environmental conditions, giving optimum performance for many years.

Key Features

Small, clear polycarbonate covered controllable media fixture with up to 400 units per ArcPixel™ Power unit. Cable length is measured from centre of each device.

Lumen Output & Light Source

Max. 86 lm
1 x Multichip

Projected Lumen Maintenance

L90B10 >90.000 hrs, Ta = 25°C / 77°F

Power Consumption

Typ. 0.8W

Physical (max WxHxD)

Ø56 x 24 mm - 0.2kg
Ø2.21 x 0.95in. - 0.44lbs
Moulded Plastic Body, Clear Polycarbonate Cover

Standard Product Versions

RGBW (W - 6500K)

Optic Options

Direct view

Control Protocols / Options

via ArcPixel Power

Standards & Certification

UKCA

RoHS

IP67

2 Years

5 Years (Registered)

European CE

ETL

Key Resources

User Manuals

ArcPix II User Manuals May 2022 Download

Specification Sheets & Certifications

ArcDot & ArcPix & ArcPixel Power - Certification Download

ArcPix II Specification Sheet v1.7 February 2025 Download

Installation Instructions

ArcPix II Installation Instructions v2 February 2023 Download

Photometrics (IES & LDT)

ArcPix II LDT, IES data January 2022 Download

CAD Files

ArcPix II 2D CAD set July 2021 Download

Product Guides

Anolis Catalogue 8/2024 Download

Can’t find what you’re looking for? View all Resources

Accessories

Connection Box ArcPix (Order Separately)

Terminator ArcPix (Order Separately)

Product Case Studies

A52 Wyvern Footbridge, Derby, UK
