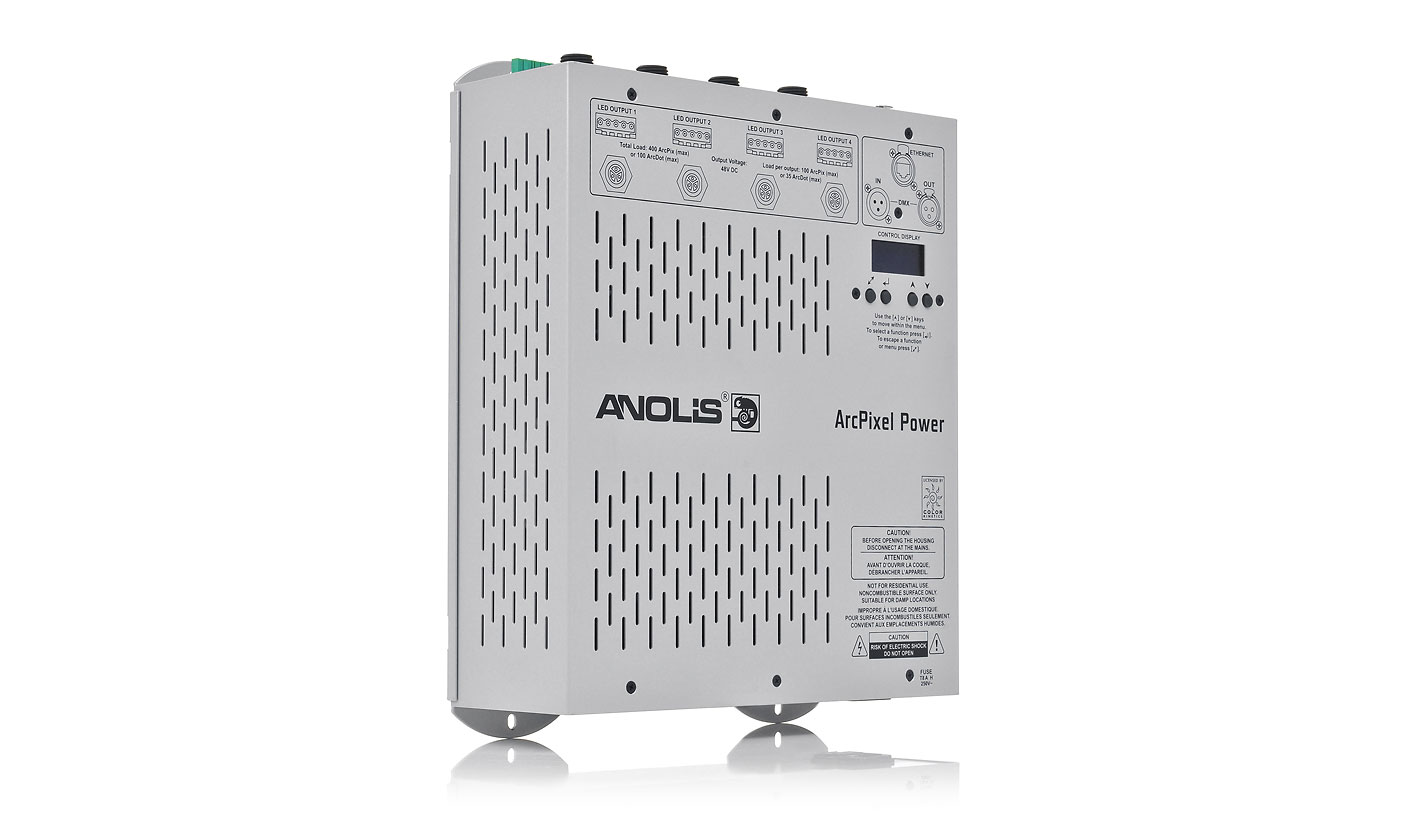

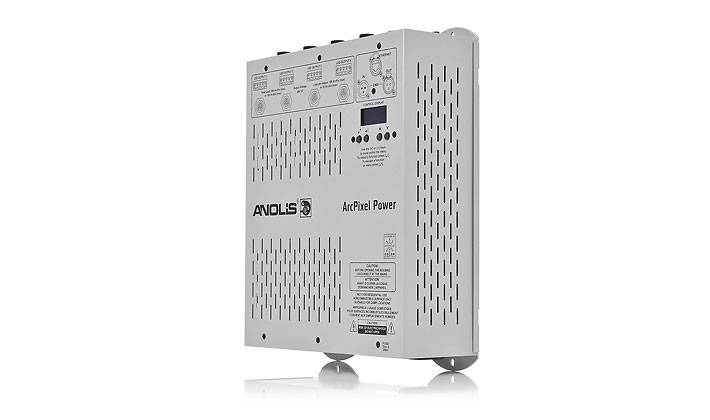

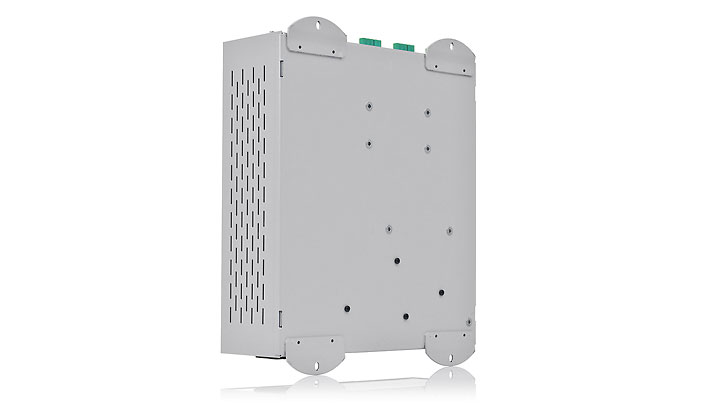

Anolis ArcPixel™ Power ArcPixel™ Power

Powering the full range of Pixel controlled Anolis products, the ArcPixel™ Power allows a large quantity of products to be connected simultaneously whilst Auto Addressing makes installation and set up easy. Compatible with both DMX and Art-Net protocols, the integration with media servers allows complex media programming, giving dynamic pixel control. The unit includes an integrated web interface allowing a quick overview of many settings via a connected PC. When pixel control is demanded by your project, ArcPixel™ Power provides the most effective and simple solution.

Key Features

LED Output
4 Zone via ArtNet, 3 Zone via DMX
CE version - ArcDot (RGBW)/ArcDot Flash/ArcSource Outdoor 4MC Pixel: 35 (typically 25), ArcPix (RGB): 100
US version - ArcDot (RGBW)/ArcDot Flash/ArcSource Outdoor 4MC Pixel: 16, ArcPix (RGB): 65
Control Protocol (connector)
USITT, DMX512 (RJ45), ArtNet
Input Voltage
100-240V AC 50/60 Hz Typ. 650W
1m captive cable
Physical (max WxHxD)
326 x 256 x 94 mm - 3.4kg
12.8 x 10.1 x 3.7 in.- 7.5lbs
Order Code - Variant Description

Product Variant

AP Pixel RGBW CE
10062712
AP Pixel RGBW ETL
10062713

Control Protocols

DMX

Standards & Certification

European CE
ETL
RoHS
IP66
IK10
Warranty
